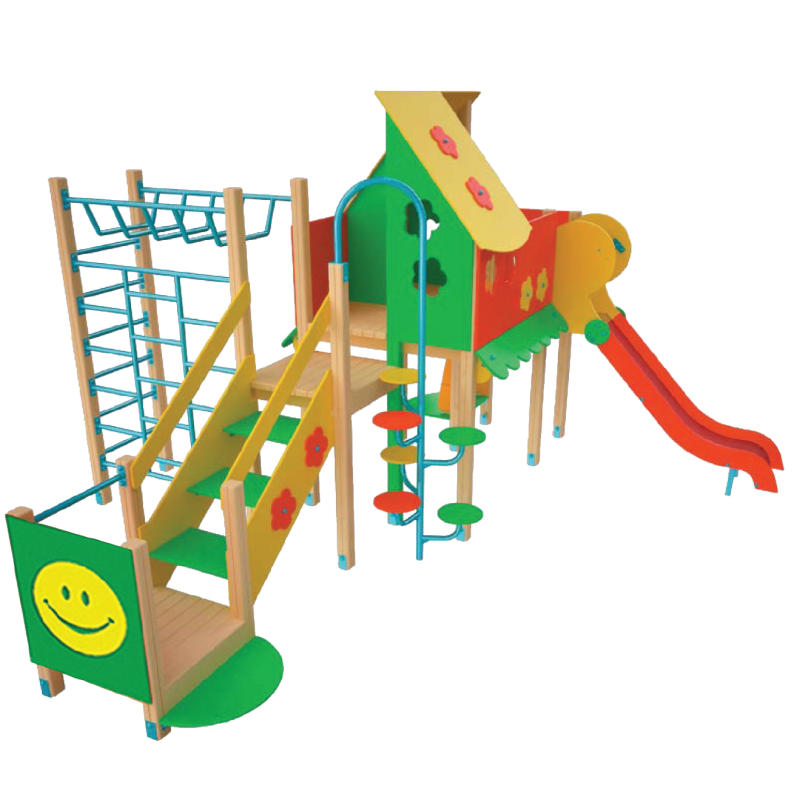

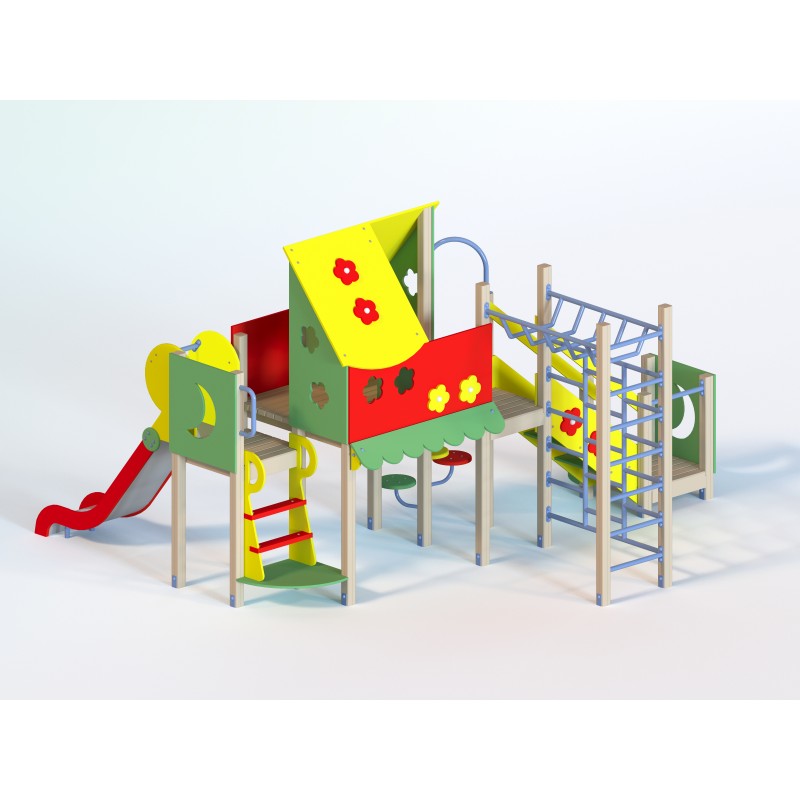

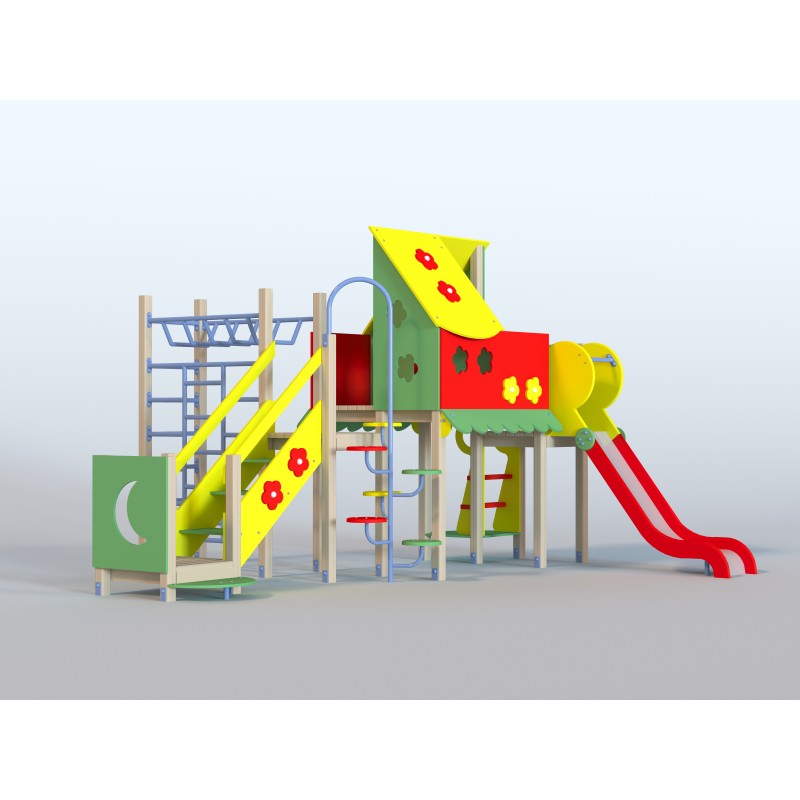

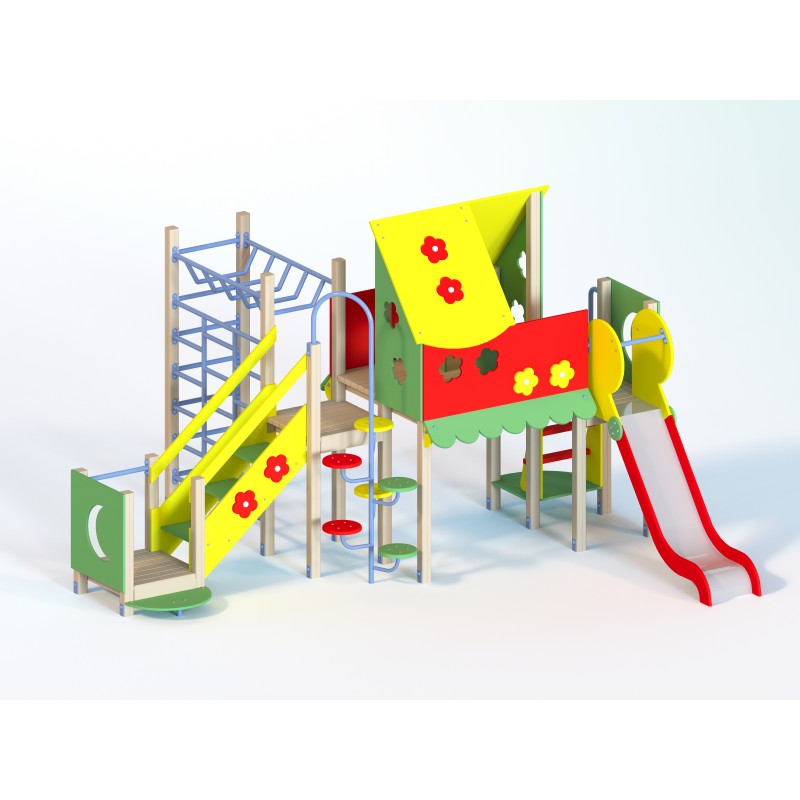

Игровой комплекс "Смайлик"

The complex is manufactured in accordance with DSTU.

Children's game complex "Smiley" of the HAPPYPLAY trademark produced by Tsvyakh software is intended for children from 3 years old.

The complex consists of one large and two smaller platforms, as well as a lower platform-step. All platforms are supported by 90 x 90 mm hardwood planks, which are anchored in the soil with special stainless steel "foot pads" to prevent damage to the wood.

The large platform looks like a house and is equipped with a gable roof and protective rails made of waterproof plywood. Two smaller platforms are attached to this platform on both sides. Decorative elements made of waterproof plywood are attached to the protective fences.

Attached to the step platform is a sloping wooden staircase leading to one of the smaller platforms. A spiral staircase and a mini-sports complex, consisting of two metal stairs and a metal handle, are attached to the same smaller platform. The spiral staircase is made of: a frame pipe with a diameter of 40 mm, a pipe for fastening steps with a diameter of 32 mm, round steps made of waterproof plywood.

Attached to a second smaller platform is a vertical wooden ladder and a stainless steel slide. The slide slide is made of stainless steel, has a protective bar and sides 100 mm high. The height of the slide is 1200 mm.

All platforms are equipped with waterproof plywood bumpers. All bolted connections are protected by plastic cups and caps.

The materials from which the equipment is made: a wooden board made of coniferous and hard wood, subjected to a special treatment, a metal pipe covered with anti-corrosion paint for outdoor use, grade 1 waterproof plywood made of polished hardwood veneer with increased water resistance, glued with E1 emission class adhesive with preliminary processing, metal elements coated with powder paints, galvanized fasteners, plastic plugs for threaded joints, professional paint for metal and wood, safe for children and the environment. All wooden and plywood elements have a varnish-and-paint coating with the REMMERS system (Germany), which reliably protects against natural influences (humidity, temperature extremes, ultraviolet radiation).

The installation method ensures the impossibility of dismantling (concreting the frame of the slide, play elements and embedded support bars).

The children's play complex "Smiley" under the HAPPYPLAY trademark produced by PO Tsvyakh has a product passport, a quality certificate and sanitary and hygienic conclusions.

Dimensions: length - 4825 mm, width - 4670 mm, height - 2935 mm.
